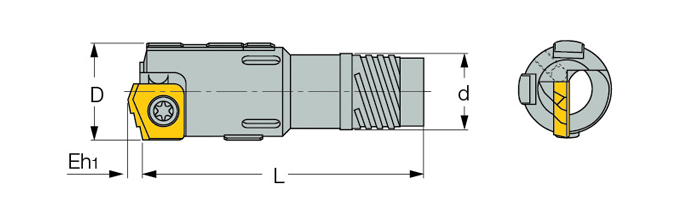

ISD-EA .745-.787
Indexable Insert Drill; 0.787″ Dia. × 2.44″ LU × 0.61″ Shank Dia.
| Cutting Diameter (DC) | 0.787″ | Overall Length (OAL) | 6.961″ |
| Usable Length (LU) | 2.44″ | Coolant Supply Property (CSP) | Through Hole |
| Application | Drilling | Connection Thread Size (Ts) | TS-I3 |
| Connection Diameter Machine Side (DCONMS) | 0.61″ | Cutting Diameter Minimum (DCN) | 0.744″ |
| Shank Size (SS) | 1″ | Cutting Diameter Maximum (DCX) | 0.787″ |
| Tool Type | Indexable Drill | Measurement Type | Inch |
| Shank Length (LS) | 2.441″ |
Product Features
| Family Description | Deep single tube drills with external 4 start thread connection, adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | For quotation form and user guide, click on "More Info". |
