DR1250-3750-125-09-3D-N

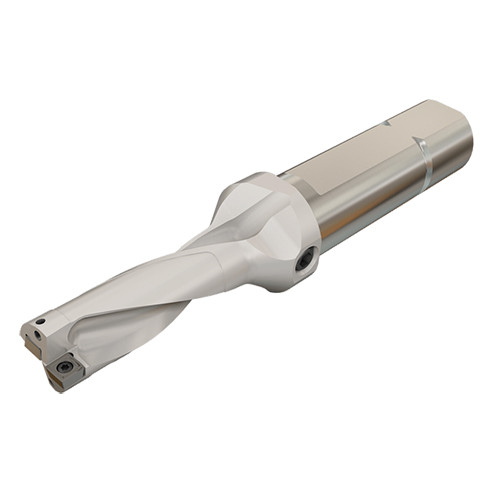

Indexable Insert Drill; 1-1/4″ Dia. × 3-3/4″ LU × 1-1/4″ Shank Dia. × 8.05″ OAL ; Steel

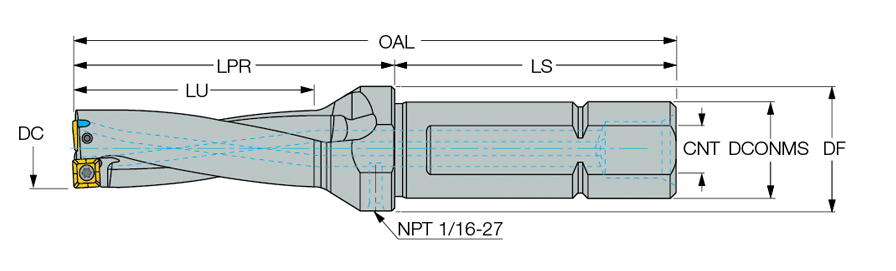

| Cutting Diameter (DC) | 1-1/4″ | Overall Length (OAL) | 8.05″ |
| Usable Length (LU) | 3-3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 1.28″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Flange Diameter (DF) | 1.654″ |
| Shank Size (SS) | 1″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 09T306-DT |
| Protruding Length (LPR) | 5.05″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 1.25″ |
| Functional Length (LF) | 5.013″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD. | Country of Origin | Israel |
| Remarks | Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Package Weight
2.19
