DR075-150-CF4-2

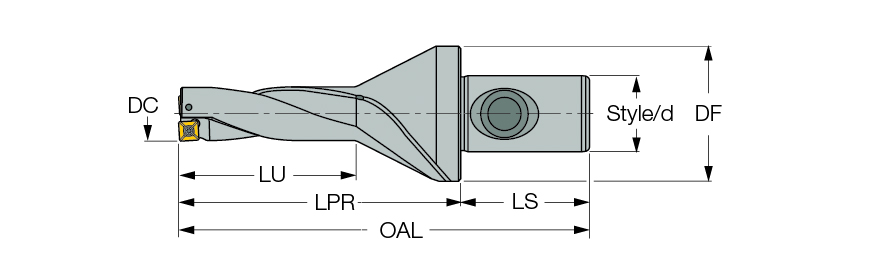

| Cutting Diameter (DC) | 0.826″ | Shank Length (LS) | 4.43″ |
| Usable Length (LU) | 4.43″ | Overall Length (OAL) | 4.43″ |
| Application | Drilling | Coolant Supply Property (CSP) | Through Hole |
| Shank Size (SS) | 1″ | Cutting Diameter Maximum (DCX) | 0.826″ |
| Tool Type | Indexable Head Drill | Measurement Type | Inch |
| Protruding Length (LPR) | 4.43″ |
Product Features
| Family Description | Indexable drills with a CLICKFIT adaptation, using square inserts. Drilling depth 2xD. | Country of Origin | Israel |
| Remarks | Hole diameter can be changed by shifting drill center along lathe X-axis. Hole tolerance: D+.004/-.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions. For Adaptation Click on "More Info" |
Shipping Info
Package Weight
1.0030
Related Documentation
Changing hole diameter by shifting drill center along lathe x-axis. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
