DRM0719-0719-075-06-1D

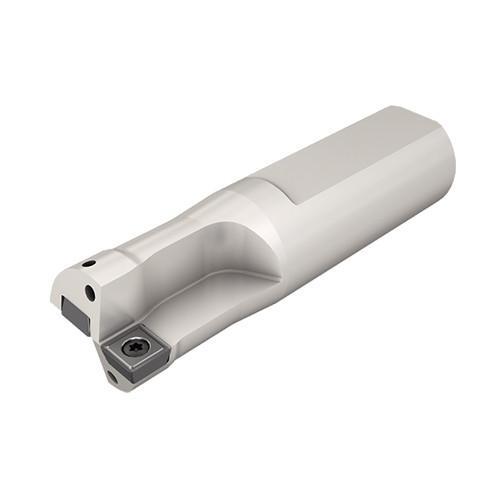

Indexable Insert Drill; 0.719″ Dia. × 0.72″ LU × 3/4″ Shank Dia. × 3.21″ OAL ; Steel

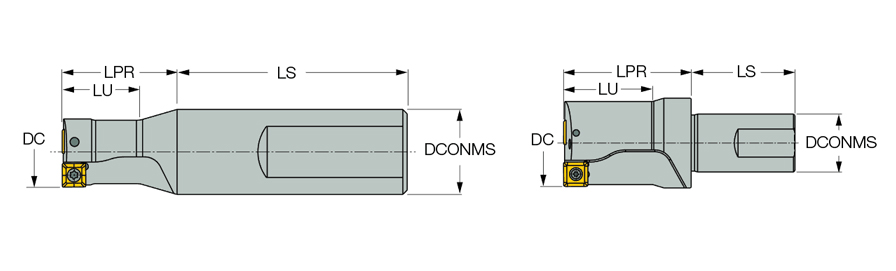

| Cutting Diameter (DC) | 0.719″ | Functional Length (LF) | 1.12″ |
| Usable Length (LU) | 0.72″ | Overall Length (OAL) | 3.21″ |
| Application | | Drill Mill | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Shank Size (SS) | 1″ | Master Insert Identification (MIID) | SOMX 06 |
| Tool Type | indexable head drills | Body Material | Steel |
| Protruding Length (LPR) | 1.18″ | Decimal Equivalent | 0.719″ |
| Shank Length (LS) | 2.03″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drilling/milling versatile tools, may be used for plunging, shouldering, slotting, pocket milling, counterboring, spot facing and profiling applications. | Country of Origin | Israel |
| Remarks | Hole tolerance: +.006/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions. Intermediate sizes may be obtained by shifting the drill center along the lathe X-axis, or by using eccenter sleeves (see page ..) in drill rotating applications. |
Shipping Info
Package Weight
0.386
