DZ1031-2320-125-2.5

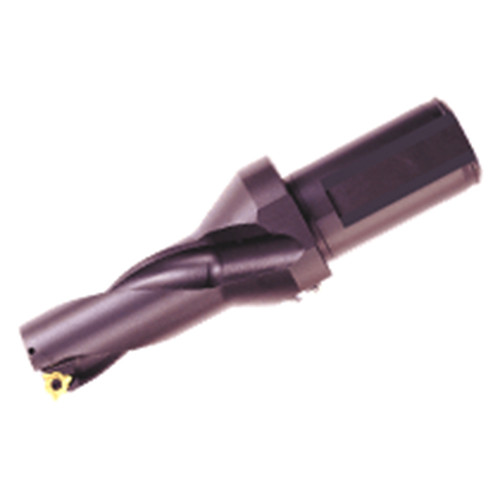

Indexable Insert Drill; 1.031″ Dia. × 6.07″ LU × 1-1/4″ Shank Dia. × 6.07″ OAL ; 2.25D

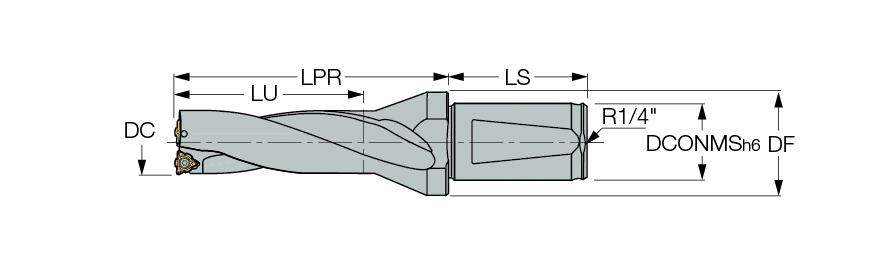

| Cutting Diameter (DC) | 1.031″ | Shank Length (LS) | 6.07″ |
| Usable Length (LU) | 6.07″ | Overall Length (OAL) | 6.07″ |
| Application | Drilling | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Shank Size (SS) | 1″ | Length Group | 2.25D |
| Tool Type | Indexable Head Drill | Master Insert Identification (MIID) | WOLH 2.5 |
| Protruding Length (LPR) | 6.07″ |
Product Features
| Family Description | Indexable serrated insert drills, drilling depth 2.25xD. | Country of Origin | Israel |
| Remarks | Hole tolerance: +.006/-.002 in average conditions. However it can be higher can or lower according to machine and tooling conditions. Intermediate sizes may be obtained by shifting the drill center along the lathe X-axis, or by using eccenter sleeves in drill rotating applications. |
Shipping Info
Package Weight
2.204
