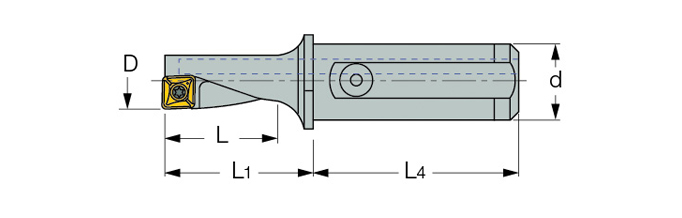

DR-MF-12L-2.25D-16A-06
| Cutting Diameter (DC) | 12 mm | Protruding Length (LPR) | 45 mm |
| Usable Length (LU) | 27 mm | Shank Length (LS) | 45 mm |
| Application | Drilling | Overall Length (OAL) | 6.961″ |
| Shank Size (SS) | 1″ | Cutting Direction (HAND) | Left Hand |
| Tool Type | Indexable Head Drill | Measurement Type | Metric |
Product Features
| Family Description | Multifunction drilling, boring, facing and external turning tool. | Country of Origin | Israel |
| Remarks | In non-rotating applications hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis. The tools have an internal coolant hole. |
Shipping Info
Package Weight
.2290
