DR074–080–200–50–12CA-N

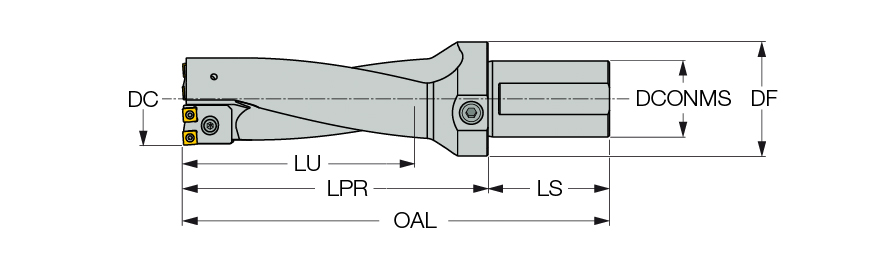

| Cutting Diameter (DC) | 80 mm | Shank Length (LS) | 80 mm |
| Usable Length (LU) | 200 mm | Overall Length (OAL) | 6.961″ |
| Application | Drilling | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Cutting Diameter Minimum (DCN) | 74 mm |
| Shank Size (SS) | 1″ | Cutting Diameter Maximum (DCX) | 80 mm |
| Tool Type | Indexable Drill | Measurement Type | Metric |
Product Features

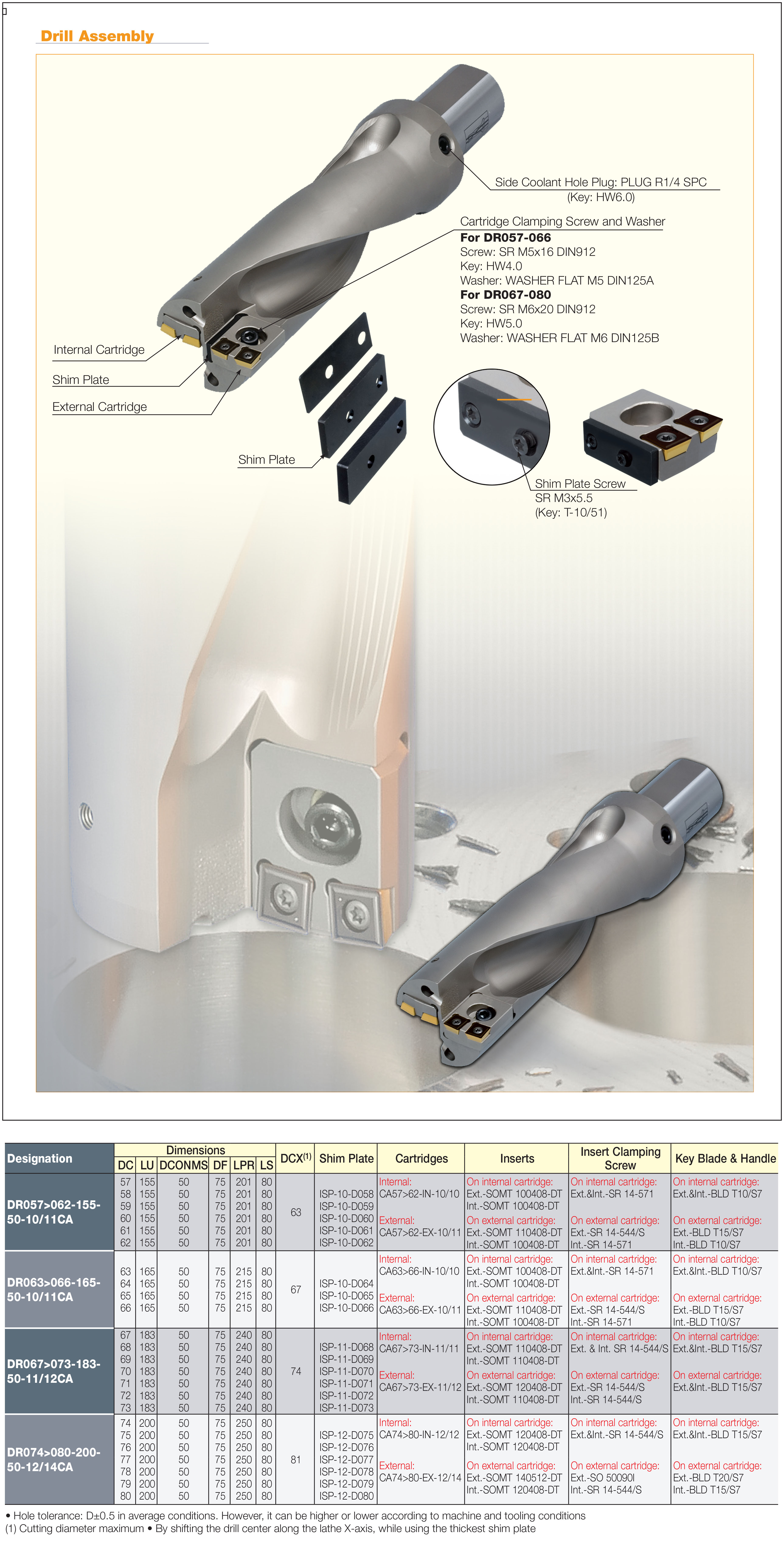

| Family Description | Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed. For each diameter details, click on "More Info" | Country of Origin | Israel |
| Remarks | Hole tolerance: D±0.5 in average conditions. However, it can be higher or lower according to machine and tooling conditions. For each drill diameter construction parts, click on "More Info". |
Shipping Info
Package Weight
13.5560
