DR230-115-25-07-5D-N

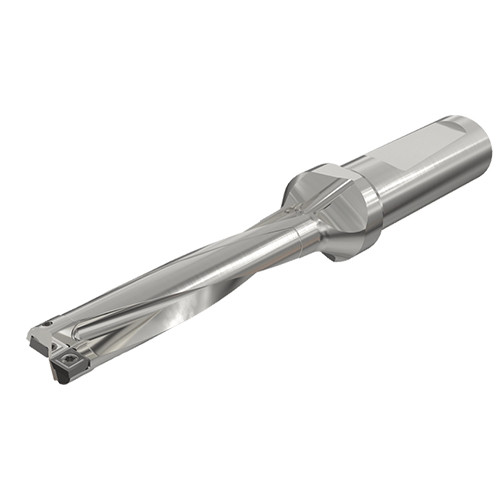

Indexable Insert Drill; 23 mm Dia. × 115 mm LU × 25 mm Shank Dia. × 191 mm OAL ; Steel

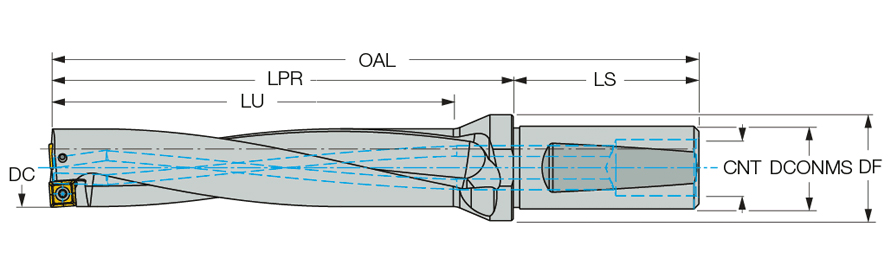

| Cutting Diameter (DC) | 23 mm | Overall Length (OAL) | 191 mm |
| Usable Length (LU) | 115 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 24.88 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Flange Diameter (DF) | 32 mm |
| Shank Size (SS) | 1″ | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 070305-DT |
| Protruding Length (LPR) | 135 mm | Body Material | Steel |
| Shank Length (LS) | 56 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 134.31 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 5xD. | Country of Origin | Israel |
| Remarks | Hole tolerance D+0.35/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Package Weight
1.105
