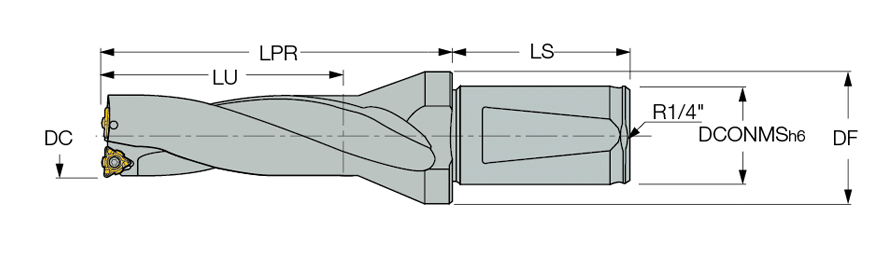

DZ027-081-32-05
| Cutting Diameter (DC) | 27 mm | Shank Length (LS) | 58 mm |
| Usable Length (LU) | 81 mm | Overall Length (OAL) | 116.97 mm |
| Application | Drilling | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Size (SS) | 1″ | Length Group | 3D |
| Tool Type | Indexable Head Drill | Master Insert Identification (MIID) | WOLH 05 |
| Protruding Length (LPR) | 117 mm |
Product Features
| Family Description | Indexable serrated insert drills, drilling depth 3xD. | Country of Origin | IL |
| Remarks | Hole tolerance: +0.25/-0.05 in average conditions. However it can be higher can or lower according to machine and tooling conditions. Intermediate sizes may be obtained by shifting the drill center along the lathe X-axis, or by using eccenter sleeves in drill rotating applications. |
Shipping Info
Package Weight
2.0290
