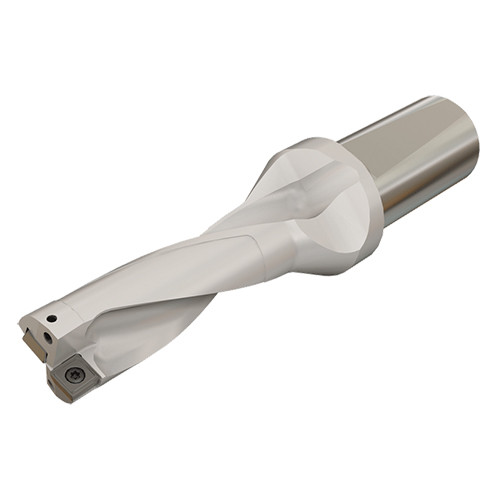

DR130-039-16-04-3D-N
Indexable Insert Drill; 13 mm Dia. × 39 mm LU × 16 mm Shank Dia. × 105 mm OAL ; Steel

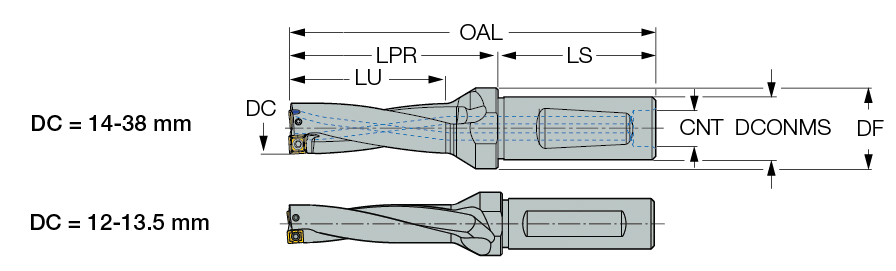

| Cutting Diameter (DC) | 13 mm | Overall Length (OAL) | 105 mm |
| Usable Length (LU) | 39 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 13.4 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Flange Diameter (DF) | 20 mm |
| Shank Size (SS) | 1″ | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | AOMT 04 |
| Protruding Length (LPR) | 57 mm | Body Material | Steel |
| Shank Length (LS) | 48 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 56.61 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD. | Country of Origin | Israel |
| Remarks | Hole tolerance D+0.25/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Package Weight
0.309
