MA230-14.0A7D100C-WJ30TF

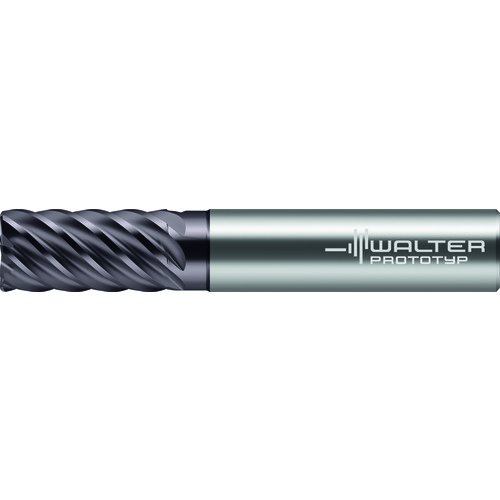

SQ End Mill; 14 mm Dia. × 38 mm LOC × 14 mm Shank Dia. × 89 mm OAL ; 1 mm RE ; 7 FL ; 32 mm LBS ; Carbide ; AlTiSiN ; Series VXMG7
| Cutting Diameter (DC) | 14 mm | Flute Count (NOF) | 7 |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Usable Length (LU) | 32 mm |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 89 mm | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5512″ |
| Coating | AlTiSiN | Series/List # | VXMG7 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.43
