Q0762152N8R01

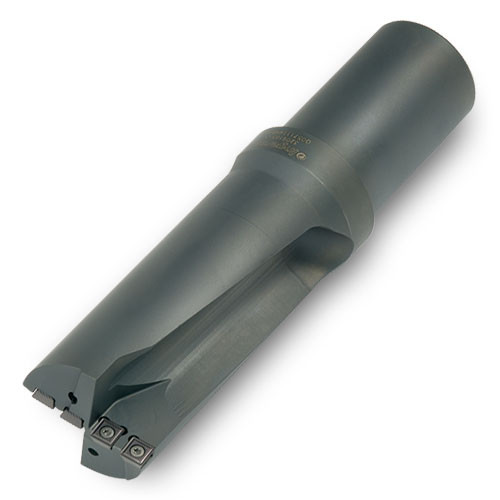

Indexable Insert Drill; 3″ Dia. × 6″ LU × 2″ Shank Dia. × 10-3/4″ OAL ; 2 ; Steel
| Cutting Diameter (DC) | 3″ | Cutting Item Count (CICT) | 4 |
| Usable Length (LU) | 6″ | Cutting Diameter Maximum (DCX) | 3.03″ |
| Application | | Drill Mill | Drilling | | Flange Diameter (DF) | 2.365″ |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Shank Size (SS) | 1″ | Length Group | 2× |
| Tool Type | Indexable Drill | Effective No. of Teeth | 1 |
| Shank Length (LS) | 3-1/4″ | Body Material | Steel |
| Functional Length (LF) | 7-1/2″ | Decimal Equivalent | 3″ |
| Overall Length (OAL) | 10-3/4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
11.00000
Package Width
3.25000
Package Height
3.25000
Package Weight
0.022
