ISC-EC 1.575-1.692
| Cutting Diameter (DC) | 7/8″ | Overall Length (OAL) | 3.543″ |
| Usable Length (LU) | 3-1/2″ | Connection Thread Size (Ts) | TS-I12 |
| Application | | Deep Drills | | Cutting Diameter Minimum (DCN) | 1.575″ |
| Connection Diameter Machine Side (DCONMS) | 1.299″ | Cutting Diameter Maximum (DCX) | 1.693″ |
| Shank Size (SS) | 1″ | Measurement Type | Inch |
| Tool Type | Deep Hole / Gun Drill |
Product Features
| Family Description | Deep single tube counterborers with through hole, external 4 start thread and a cartridge. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Israel |

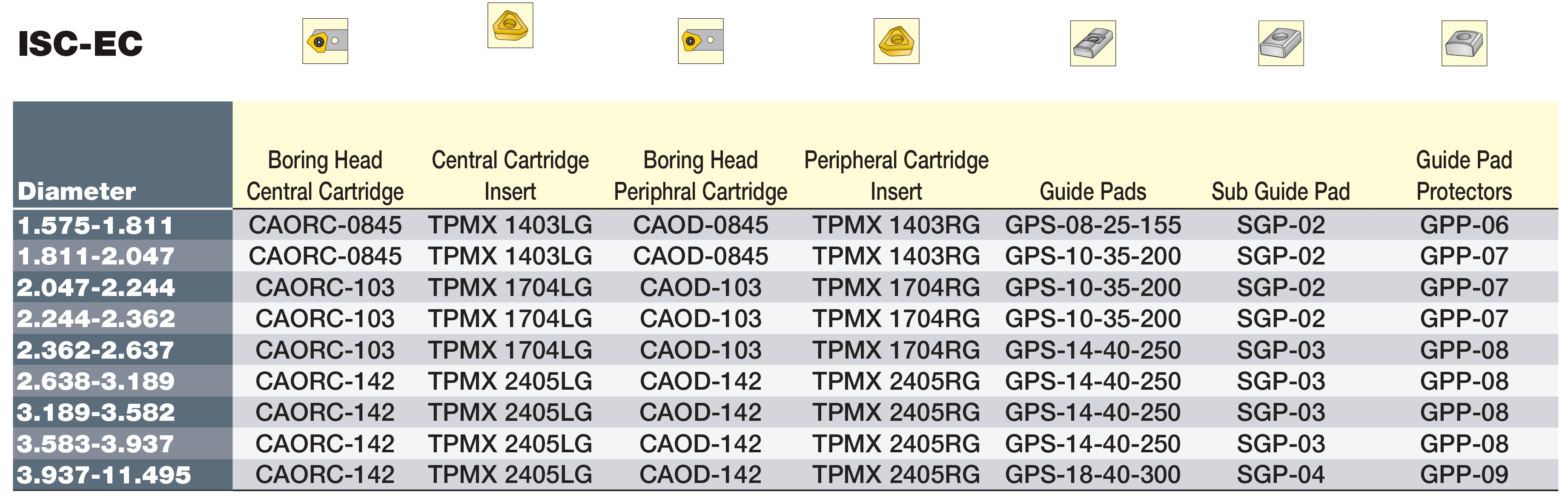

| Remarks | CAOD - Rough boring cartridge (large D.O.C.) CAORC - Precision boring cartridge Supplied with CAOD cartridge, unless ordered differently For quotation form and user guide, click on "More Info" |
Shipping Info
Package Weight
2
