QR0390195JGR00

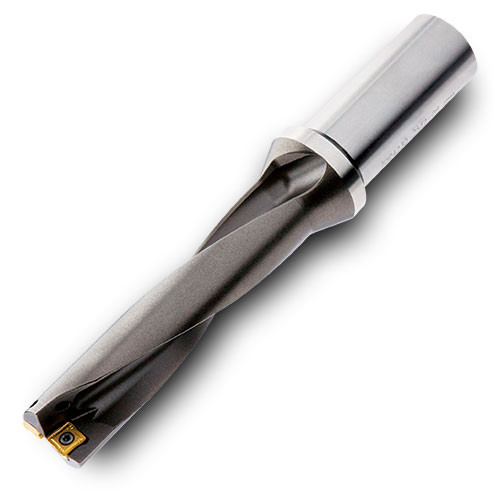

Indexable Insert Drill; 1.535″ Dia. × 7.677″ LU × 1.26″ Shank Dia. × 11.142″ OAL ; 5D ; Steel
| Cutting Diameter (DC) | 1.535″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 7.677″ | Flange Diameter (DF) | 1.575″ |
| Application | | Drill Mill | Drilling | | Point Length (PL) | 0.074″ |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Measurement Type | Inch |
| Shank Size (SS) | 1″ | Length Group | 5D |
| Tool Type | Indexable Drill | Effective No. of Teeth | 1 |
| Shank Length (LS) | 2.362″ | Body Material | Steel |
| Functional Length (LF) | 8.78″ | Decimal Equivalent | 1.535″ |
| Overall Length (OAL) | 11.142″ |
Product Features
| Family Description | Note: Brass coolant fitting should be ordered separately | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
3.384
