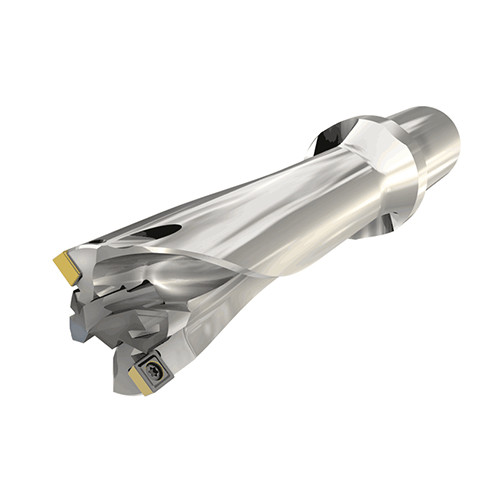

MNC1750-525-150-0850-12-3
Indexable Insert Drill; 1-3/4″ Dia. × 5.458″ LU × 1-1/2″ Shank Dia. × 9.98″ OAL ; Steel

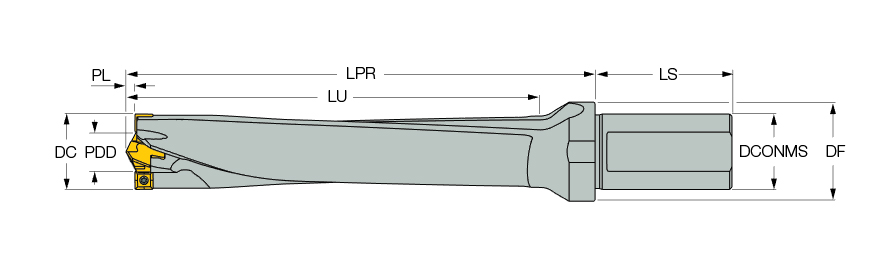

| Cutting Diameter (DC) | 1-3/4″ | Overall Length (OAL) | 9.98″ |
| Usable Length (LU) | 5.458″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Flange Diameter (DF) | 1.968″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Shank Size (SS) | 1″ | Master Insert Identification (MIID) | SOGT 120408-W |
| Tool Type | Indexable Insert Drills | Body Material | Steel |
| Protruding Length (LPR) | 7.31″ | Decimal Equivalent | 1.75″ |
| Shank Length (LS) | 2.67″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Large diameter full effective indexable drills with pilot drilling head and one flat shanks. Drilling depth 3xD. High drilling rates, high accuracy and surface finish. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.004/-.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Package Weight
4.213
