DR2.63>2.87-7.2-2-11/12CA

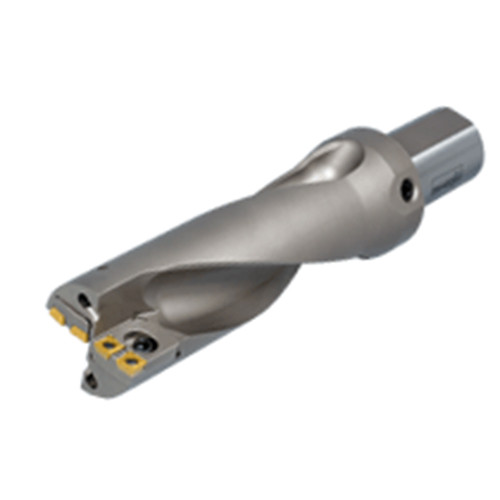

Indexable Insert Drill; 2.63″ Dia. × 7.19″ LU × 2″ Shank Dia. × 12.55″ OAL ; Steel
| Cutting Diameter (DC) | 2.63″ | Overall Length (OAL) | 12.55″ |
| Usable Length (LU) | 7.19″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Minimum (DCN) | 2.63″ |
| Connection Diameter Machine Side (DCONMS) | 2″ | Cutting Diameter Maximum (DCX) | 2.87″ |
| Shank Size (SS) | 1″ | Flange Diameter (DF) | 2.72″ |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Protruding Length (LPR) | 9.4″ | Body Material | Steel |
| Shank Length (LS) | 3.15″ | Decimal Equivalent | 2.63″ |
| Functional Length (LF) | 9.3″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed. | Country of Origin | S.Korea |
| Remarks | Hole tolerance: D±.020 in average conditions applied. It can be higher or lower according to machine and tooling conditions For each drill diameter assembly parts and inserts, click on More Info. |
Shipping Info
Package Weight
11.507
