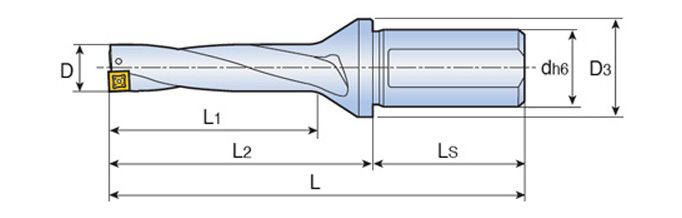

TDR 3245-25T2-07
Indexable Insert Drill; 24.5 mm Dia. × 158 mm LU × 25 mm Shank Dia. × 6.961″ OAL
| Cutting Diameter (DC) | 24.5 mm | Protruding Length (LPR) | 75 mm |
| Usable Length (LU) | 158 mm | Shank Length (LS) | 102 mm |
| Application | Drilling | Overall Length (OAL) | 6.961″ |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Through Hole |
| Shank Size (SS) | 1″ | Measurement Type | Metric |
| Shank Type | Weldon | Effective No. of Teeth | 1 |
| Tool Type | Indexable Drill |
Product Features
| Family Description | T-Drill Indexable HELIQUAD Insert drills. Drilling depth 3xD. | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.124
