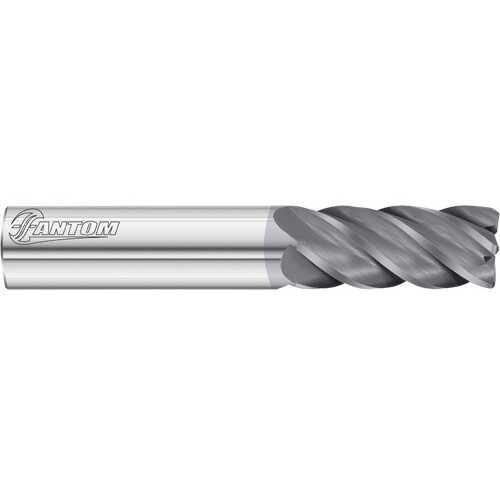

Corner Radius End Mill; 12 mm Dia. × 16 mm LOC × 12 mm Shank Dia. × 63 mm OAL ; 5 FL ; Carbide ; FC20 ; Series 3412
SQ End Mill; 12 mm Dia. × 16 mm LOC × 12 mm Shank Dia. × 63 mm OAL ; 5 FL ; Carbide ; Series 3412
| Cutting Diameter (DC) | 12 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 16 mm | Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 63 mm | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | FC20 | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 5 | Series/List # | 3412 |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.225
