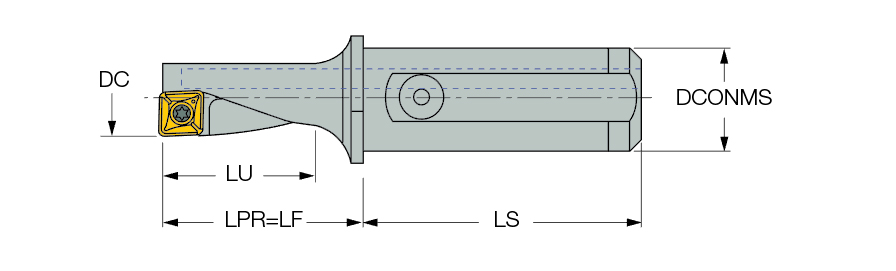

DR-MF-I-32R-2.25D-150A-17
| Cutting Diameter (DC) | 1.26″ | Overall Length (OAL) | 3.39″ |
| Usable Length (LU) | 2.84″ | Coolant Supply Property (CSP) | Through Hole |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Length Group | 2D |
| Shank Size (SS) | 1″ | Cutting Position | External |
| Tool Type | Internal Indexble – Turn Tool |
Product Features
| Family Description | Multifunction drilling, boring, facing and external turning tool. | Country of Origin | Israel |
| Remarks | In non-rotating applications hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis. The tools have an internal coolant hole. |
Shipping Info
Package Weight
2.4470
