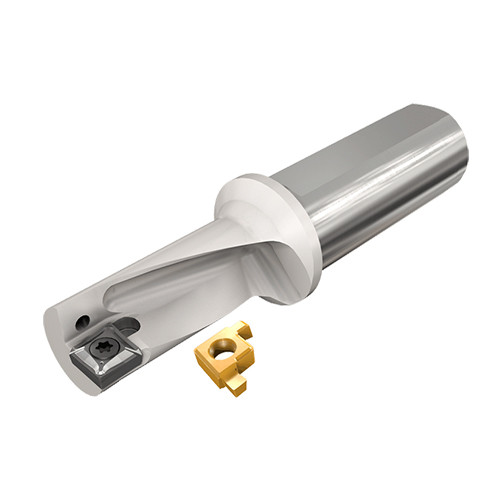

DRG-MF-10L-2.25D-12A-05
Indexable Insert Drill; 10 mm Dia. × 22.5 mm LU × 12 mm Shank Dia. × 69.5 mm OAL ; 2xD ; Steel

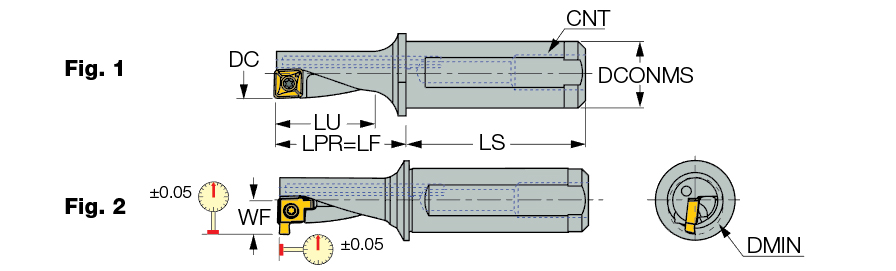

| Cutting Diameter (DC) | 10 mm | Overall Length (OAL) | 69.5 mm |
| Usable Length (LU) | 22.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Group | 2xD |
| Shank Size (SS) | 1″ | Master Insert Identification (MIID) | XCMT 05... |
| Protruding Length (LPR) | 27.5 mm | Body Material | Steel |
| Shank Length (LS) | 42 mm |
Product Features

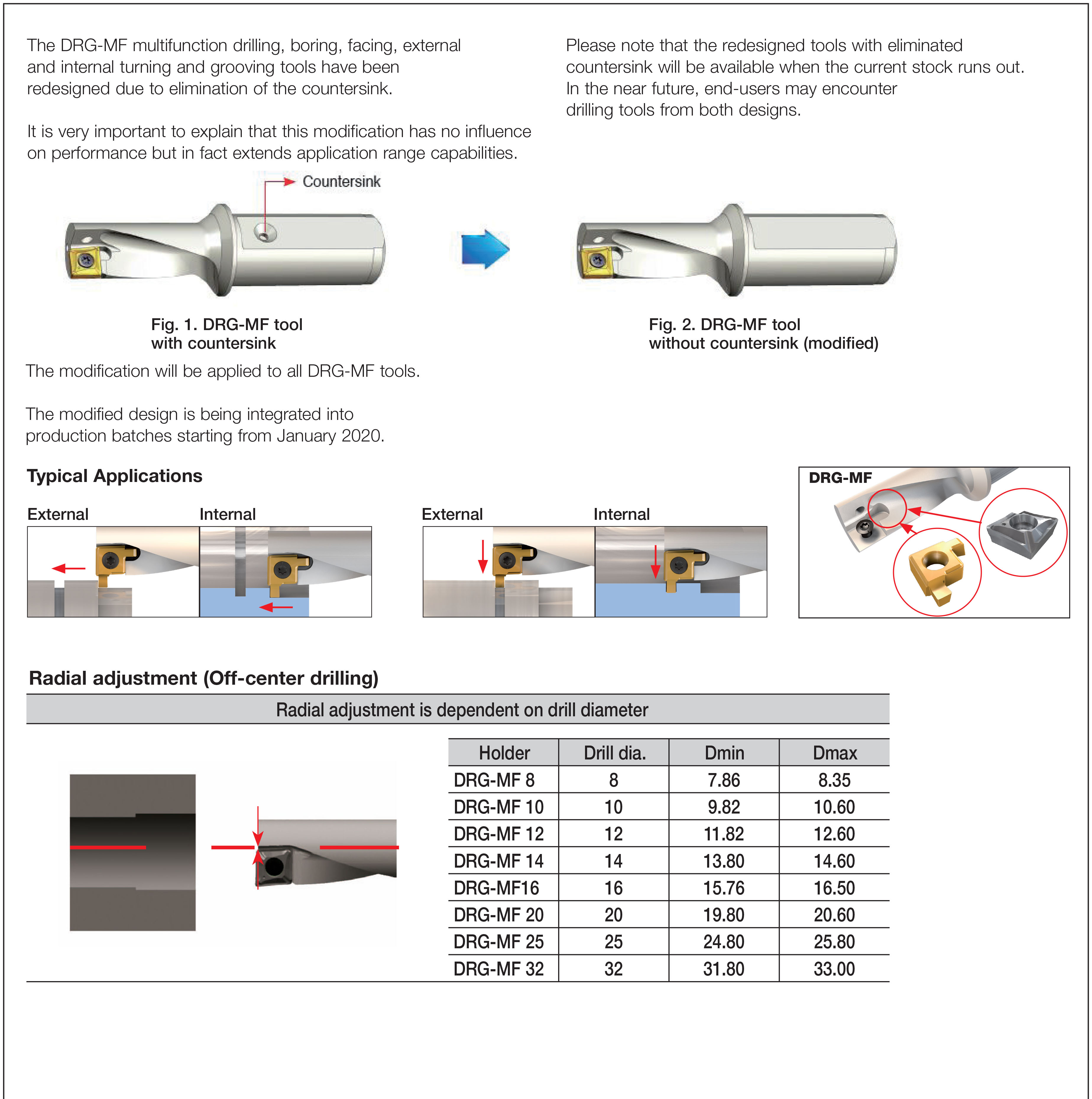

| Family Description | Multifunction drilling, boring, facing, external turning and internal grooving tools. | Country of Origin | S.Korea |
| Remarks | In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis The tools feature internal coolant holes. |
Shipping Info
Package Weight
0.123
