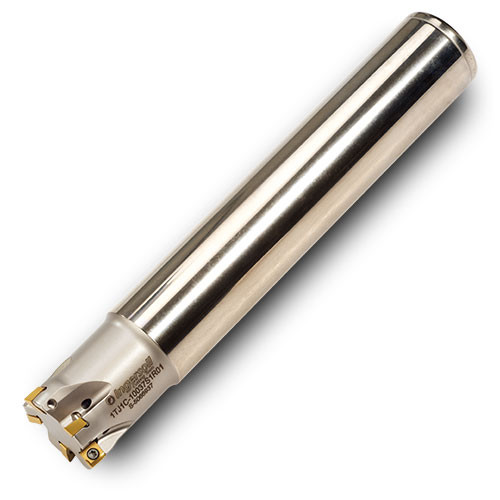

1TJ1C-10037S1R01
Indexable End Mill; 1″ Dia. × 0.18″ LOC × 1″ Shank Dia. × 6″ OAL × 1-1/4″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Usable Length (LU) | 1-1/4″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.18″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 3-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: .008″ .015″ .031″ .062 R & Hi-Feed 32-63 Ra surface finishes when engaging the wiper (WEP) Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress | Country of Origin | Usa |
Shipping Info
Package Weight
0.003
