1TJ1C-0701284R01

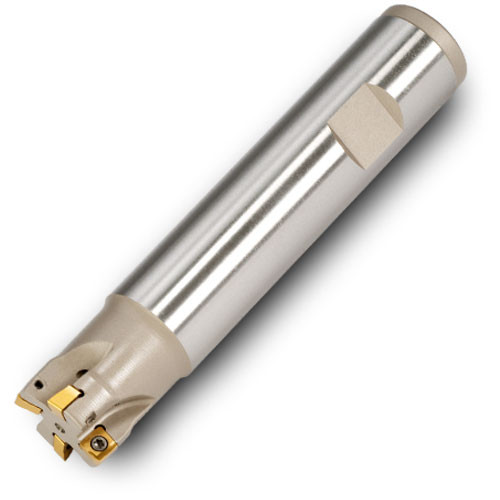

Indexable End Mill; 3/4″ Dia. × 0.18″ LOC × 3/4″ Shank Dia. × 3-1/4″ OAL × 1.22″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 1.22″ |
| Cutting Diameter (DC) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.18″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3-1/4″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 3.3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the wiper (WEP) Double-Dovetail-Pocket fosters easy insert indexing & eliminates insert screw stress | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
