47B-3751T6RB07 IN2005

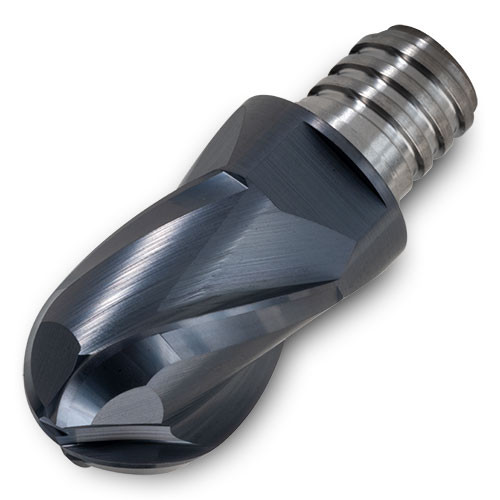

End Mill Head; 3/8″ Dia. × 0.51″ LOC × 0.7″ Max Depth × 0.364″ Shank Dia. × 1.098″ OAL ; 4 FL
| Cutting Diameter (DC) | 3/8″ | Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 4 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 0.187″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.51″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.364″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 3/4″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.000
