45D10009T6RA20 IN2006

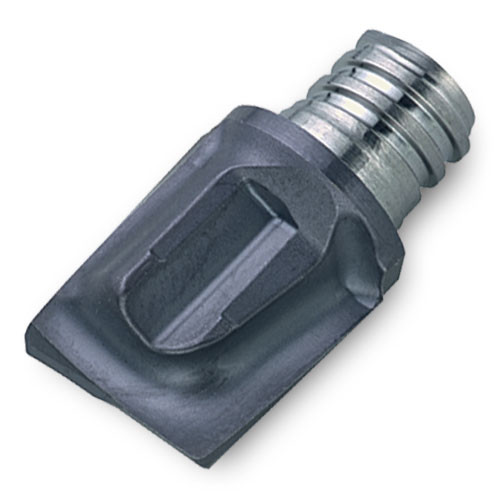

End Mill Head; 10 mm Dia. × 8.9 mm LOC × 0.7″ Max Depth × 9.5 mm Shank Dia. × 1.098″ OAL ; 2 FL
| Cutting Diameter (DC) | 10 mm | Flute Helix Angle (FHA) | 10 Degrees |
| Flute Count (NOF) | 2 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 2 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 8.9 mm | Ramping Angle Maximum (RMPX) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 9.5 mm | Body Material | Steel |
| Functional Length (LF) | 12.4 mm | Corner Radius (RE) / Chamfer Width (CHW) | 2.000 R |
Product Features
| Family Description | Corner: 0.2, 0.4, 0.3, 0.8, 1.0 & 2.0 mm R Ideal for milling blind key-slots Economical solution for 90° shoulders | Country of Origin | Israel |
Shipping Info
Package Weight
0.029
