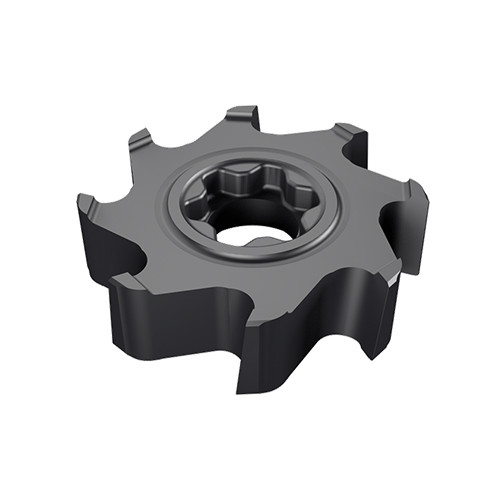

SD FM D1.25-312D-SP15 IC908
End Mill Head; 1.23″ Dia. × 0.312″ LOC × 0.591″ Shank Dia. × 0.315″ OAL ; 8 FL ; Carbide ; TiAlN ; IC908

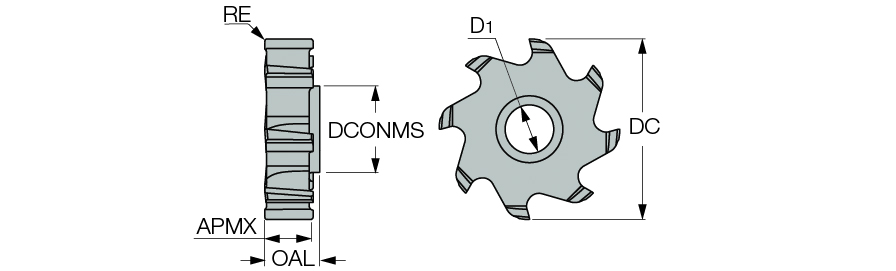

| Application | | Facing | Shouldering | | Grade | IC908 |
| Cutting Diameter (DC) | 1.23″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 1/3″ |
| Flute Count (NOF) | 8 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0165″ | Maximum Feed per Tooth (fz(max)) | 0.006 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.312″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.591″ | Body Material | Carbide |
| Functional Length (LF) | 0.314″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
Product Features
| Family Description | Interchangeable solid carbide face milling heads. | Country of Origin | Israel |
| Remarks | For machining recommendations, click on More Info |
Shipping Info
Package Weight
0.132
