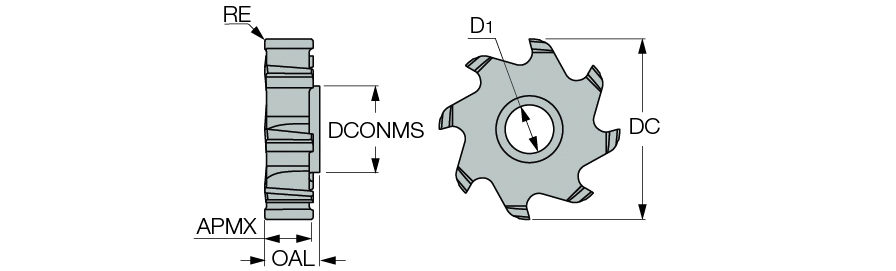

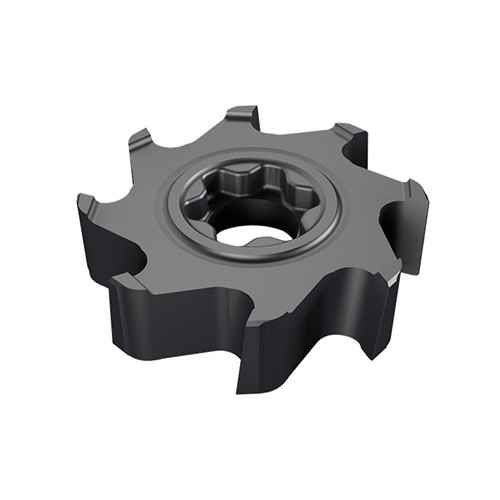

SD FM D40-10-R0.4SP17 IC908
End Mill Head; 39.25 mm Dia. × 10 mm LOC × 17 mm Shank Dia. × 10 mm OAL ; 10 FL ; Carbide ; TiAlN ; IC908
| Application | | Facing | Shouldering | | Coating | TiAlN |
| Cutting Diameter (DC) | 39.25 mm | Fixing Hole Diameter (D1) | 9.8 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 10 | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Body Material | Carbide |
| Functional Length (LF) | 10 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 10 mm | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable solid carbide face milling heads. | Country of Origin | Israel |
| Remarks | For machining recommendations, click on More Info |
Shipping Info
Package Weight
0.002
