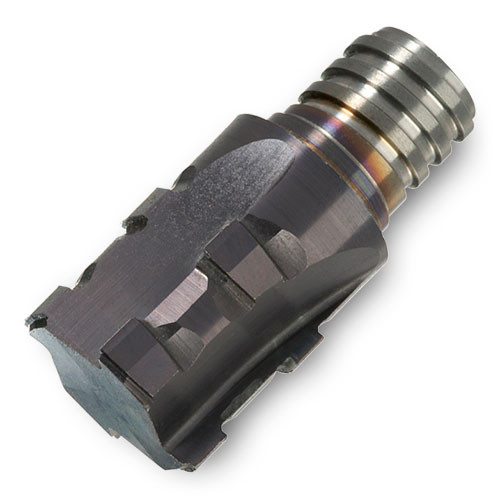

47Z-4380T6RA01 IN2005
End Mill Head; 0.437″ Dia. × 0.033″ LOC × 0.7″ Max Depth × 0.365″ Shank Dia. × 1.098″ OAL ; 4 FL ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 0.437″ | Functional Length (LF) | 0.8″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 4 | Grade | IN2005 |
| Corner Radius (RE) | 0.005″ | Coating | TiAlN |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.033″ | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 1/8″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.365″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.23
