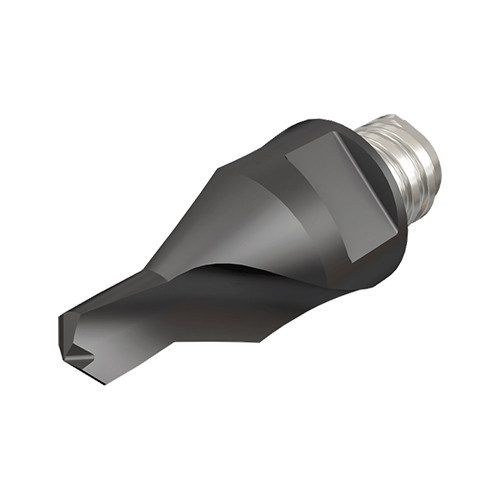

MM ECS-A1.60X06-2T04 IC908
End Mill Head; 0.065″ Dia. × 0.236″ Shank Dia. × 0.673″ OAL ; 2 FL ; T04 ; Carbide ; TiAlN ; IC908
| Application | | Countersinking | Drilling | | Coating | TiAlN |
| Cutting Diameter (DC) | 0.065″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 2 | Drill Protruding Length | 0.09″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T04 | Tool Type | center & Spot Drills |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Body Material | Carbide |
| Overall Length (OAL) | 0.673″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable solid carbide centering drills (ANSI B94.11M / DIN 332) | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.01
