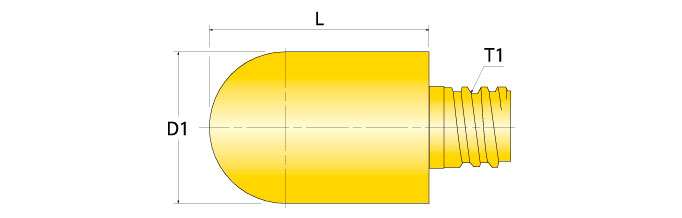

4RB-08000TQS100 IN05S MI
| Cutting Diameter (DC) | 1″ | Connection Diameter Machine Side (DCONMS) | 0.96″ |
| Applicable Material | Steel|Stainless Steel|Non-Ferrous Metals|Hi-Temp Alloys | Overall Length (OAL) | 0.407″ |
| Flute Count (NOF) | 4 | Grade | IN05S |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.315″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Depth of Cut Maximum (APMX) | 0.7″ |
Product Features
| Family Description | Thread Size: T05, T06, T08 and T10 | Country of Origin | USA |
Shipping Info
Package Weight
