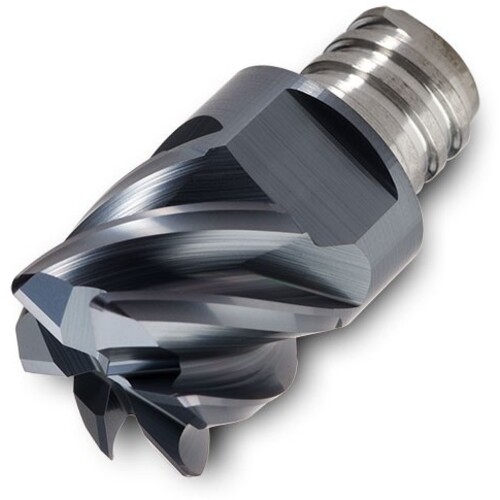

48D10007T6RB05 IN2005
End Mill Head; 1″ Dia. × 13″ LOC × 0.7″ Max Depth × 0.96″ Shank Dia. × 1.098″ OAL ; 6 FL ; T06 ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 1″ | Connection Diameter Machine Side (DCONMS) | 0.96″ |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys | Functional Length (LF) | 7″ |
| Flute Count (NOF) | 6 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 1/2″ | Grade | IN2005 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Coating | TiAlN |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 10″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 13″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Grade: IN2005 Corner: Sharp, .015″, .031″, .062″ and .125″R | Country of Origin | Israel |
Shipping Info
Package Weight
0.048
