46D12008T8RN02 IN05S

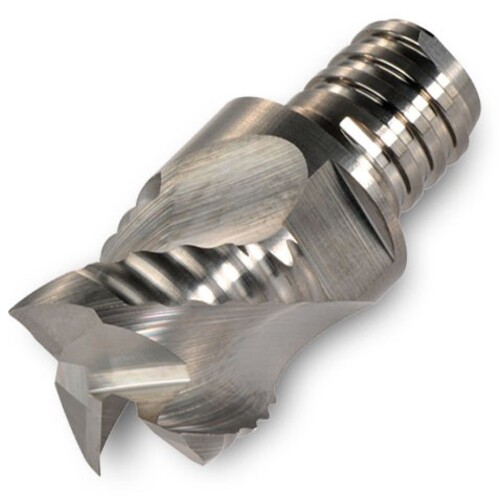

End Mill Head; 1″ Dia. × 16-1/2″ LOC × 0.7″ Max Depth × 0.96″ Shank Dia. × 1.098″ OAL ; 3 FL ; T08 ; Carbide ; IN05S
| Cutting Diameter (DC) | 1″ | Connection Diameter Machine Side (DCONMS) | 0.96″ |
| Applicable Material | Steel|Stainless Steel|Non-Ferrous Metals|Hi-Temp Alloys | Functional Length (LF) | 8.5″ |
| Flute Count (NOF) | 3 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 0.2″ | Grade | IN05S |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 16-1/2″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Depth of Cut Maximum (APMX) | 16-1/2″ |
Product Features
| Family Description | Grade: IN05S Corner: Radius | Country of Origin | Israel |
Shipping Info
Package Weight
0.062
