47J06005TQRD10 IN2005

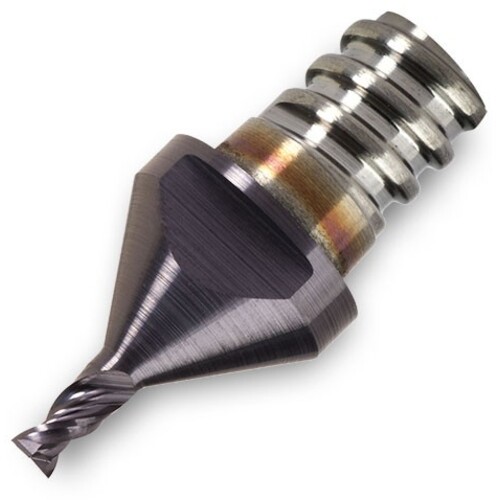

End Mill Head; 1″ Dia. × 10″ LOC × 0.7″ Max Depth × 0.96″ Shank Dia. × 1.098″ OAL ; 4 FL ; T05 ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 5.5″ |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 4 | Grade | IN2005 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Coating | TiAlN |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 6″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 10″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.96″ |
Product Features
| Family Description | Grade: IN2005 Corner: Sharp, .015″, .031″ and .062″R | Country of Origin | Israel |
Shipping Info
Package Weight
0.026
