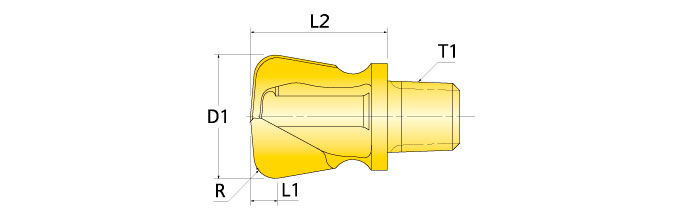

45A16001TRRA30 IN2005
| Cutting Diameter (DC) | 1″ | Connection Diameter Machine Side (DCONMS) | 0.96″ |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys | Functional Length (LF) | 0.04″ |
| Flute Count (NOF) | 2 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 0.12″ | Grade | IN2005 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Coating | TiAlN |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 16″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.8″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Grade: IN2005 | Country of Origin | Israel |
Shipping Info
Package Weight
0.27
