19F39210LRRA04 IN2005

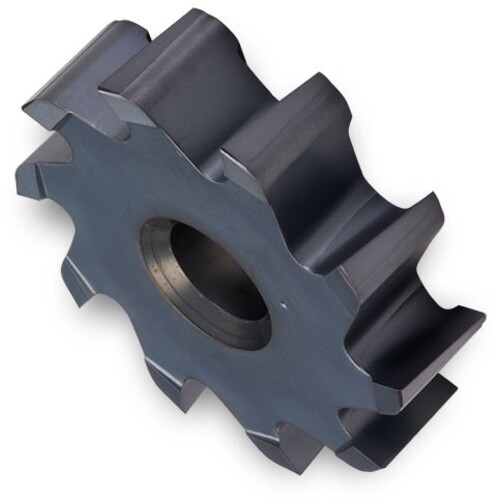

End Mill Head; 1.575″ Dia. × 0.394″ LOC × 0.7″ Max Depth × 0.96″ Shank Dia. × 1.098″ OAL ; 10 FL
| Application | | Facing | Shouldering | | Functional Length (LF) | 0.394″ |
| Cutting Diameter (DC) | 1.575″ | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 10 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.394″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Corners: 0.4mm R Strong and precise Bore, Screw & Tri-Lobe Drive Connection that accomodates high torque transfer | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.246
