47W10016T6RB20 IN2005

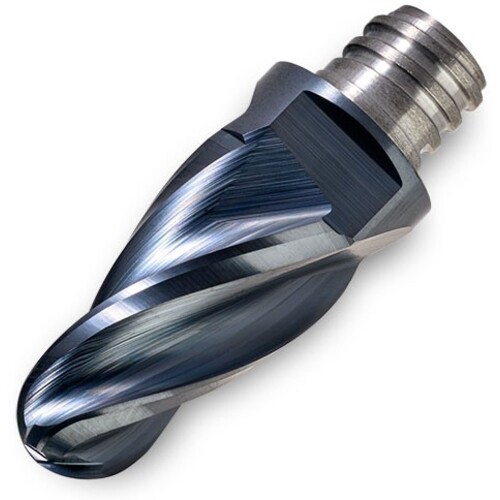

End Mill Head; 0.394″ Dia. × 0.65″ LOC × 0.7″ Max Depth × 0.394″ Shank Dia. × 1.098″ OAL ; 4 FL
| Application | | Shouldering | | Functional Length (LF) | 0.866″ |
| Cutting Diameter (DC) | 0.394″ | Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 4 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 0.079″ | Profile Angle (PRFA) | 78 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.65″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | 1.5, 2.0, 3.0 & 4.0 R nose Ideal for finishing blisks, impellers & turbine rotors | Country of Origin | Israel |
Shipping Info
Package Weight
0.024
