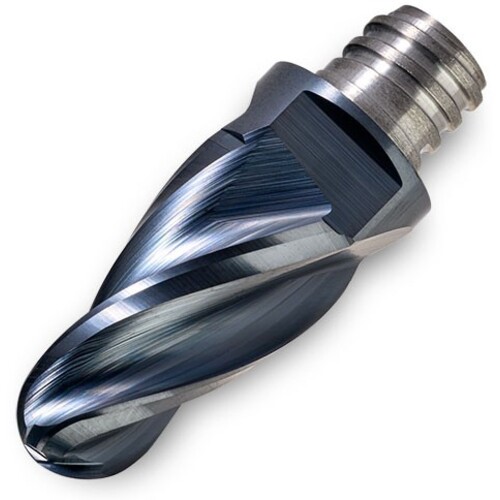

47W08014TQRB15 IN2005
End Mill Head; 0.315″ Dia. × 0.559″ LOC × 0.7″ Max Depth × 0.315″ Shank Dia. × 1.098″ OAL ; 4 FL
| Application | | Shouldering | | Functional Length (LF) | 0.709″ |
| Cutting Diameter (DC) | 0.315″ | Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 4 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 0.059″ | Profile Angle (PRFA) | 78 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.559″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | 1.5, 2.0, 3.0 & 4.0 R nose Ideal for finishing blisks, impellers & turbine rotors | Country of Origin | Israel |
Shipping Info
Package Weight
0.034
