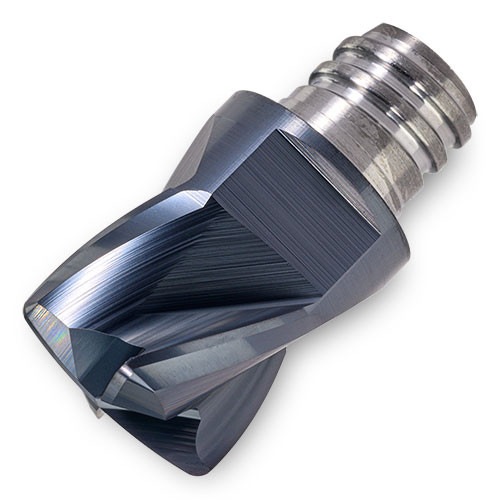

47D-5035T8RB04 IN2005
End Mill Head; 1/2″ Dia. × 0.006″ LOC × 0.7″ Max Depth × 1/2″ Shank Dia. × 1.098″ OAL ; 4 FL
| Cutting Diameter (DC) | 1/2″ | Functional Length (LF) | 0.65″ |
| Flute Count (NOF) | 4 | Flute Helix Angle (FHA) | 30 Degrees |
| Corner Radius (RE) | 1″ | Overall Length (OAL) | 1.098″ |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.006″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | .00078 profile tolerance Precise lens-shape face geometry for finishing decks using 3-Axis Machine Improved surface finish with 2x productivity when compared to a ballnose | Country of Origin | Israel |
Shipping Info
Package Weight
0.074
