18F12036TQRA02 IN2005
End Mill Head; 0.472″ Dia. × 0.142″ LOC × 0.7″ Max Depth × 0.96″ Shank Dia. × 1.098″ OAL ; 6 FL

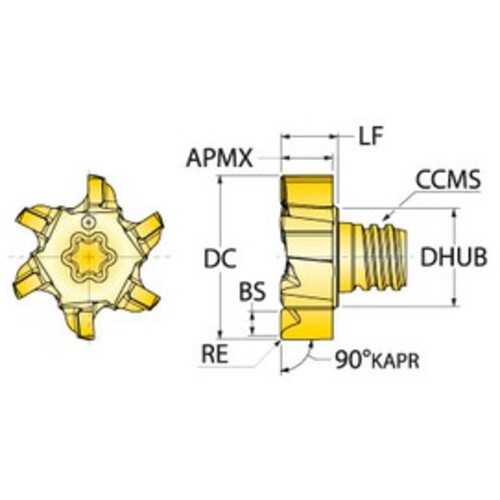

| Application | | Facing | Shouldering | | Functional Length (LF) | 0.173″ |
| Cutting Diameter (DC) | 0.472″ | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.142″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | 20-32 Ra surface finishes Ideal for facing and shouldering in narrow confined areas. Well suited for milling flats on bar stock with Mill-Turn machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.026
