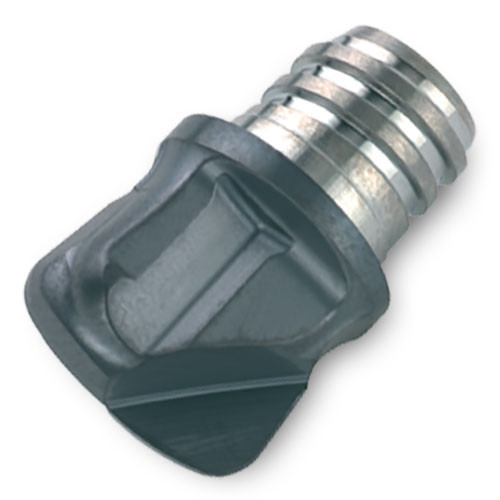

45A16001TRRA301 IN2005
End Mill Head; 0.63″ Dia. × 0.043″ LOC × 0.7″ Max Depth × 0.598″ Shank Dia. × 1.098″ OAL ; 2 FL ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 0.63″ | Grade | IN2005 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.043″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.598″ | Ramping Angle Maximum (RMPX) | 7 Degrees |
| Functional Length (LF) | 0.531″ | Body Material | Steel |
| Overall Length (OAL) | 1.098″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.082
