46W12013T8RB031 IN05S

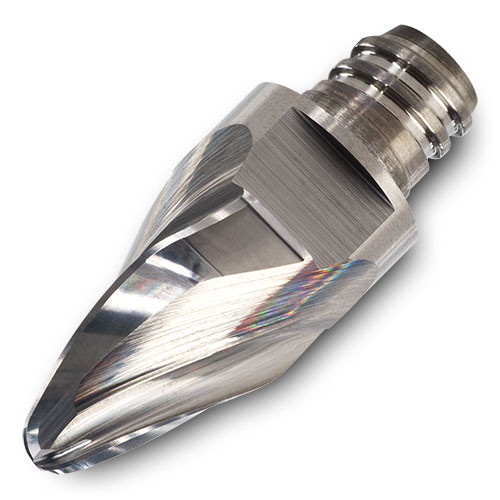

End Mill Head; 0.472″ Dia. × 0.531″ LOC × 0.7″ Max Depth × 0.453″ Shank Dia. × 1.098″ OAL ; 3 FL ; Carbide ; IN05S
| Cutting Diameter (DC) | 0.472″ | Flute Helix Angle (FHA) | 30 Degrees |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 3 | Grade | IN05S |
| Corner Radius (RE) | 0.118″ | Profile Angle (PRFA) | 70 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.531″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.453″ | Body Material | Steel |
| Functional Length (LF) | 0.921″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | 1.5, 2.0, 3.0 & 4.0 R nose Sharp & uncoated for non-ferrous material Ideal for finishing blisks, impellers & turbine rotors | Country of Origin | Germany |
Shipping Info
Package Weight
0.066
