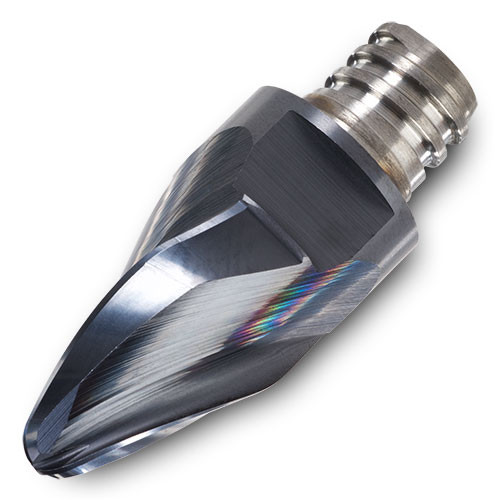

46W10013T6RB020 IN2005
End Mill Head; 0.394″ Dia. × 0.531″ LOC × 0.7″ Max Depth × 0.366″ Shank Dia. × 1.098″ OAL ; 3 FL ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 0.394″ | Overall Length (OAL) | 1.098″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IN2005 |
| Flute Count (NOF) | 3 | Coating | TiAlN |
| Corner Radius (RE) | 0.079″ | Profile Angle (PRFA) | 70 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.531″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.366″ | Body Material | Steel |
| Functional Length (LF) | 0.764″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | 1.5, 2.0, 3.0 & 4.0 R nose Ideal for finishing blisks, impellers & turbine rotors | Country of Origin | Germany |
Shipping Info
Package Weight
0.006
