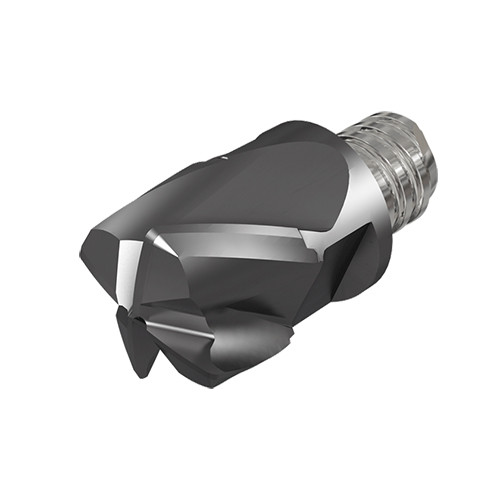

MM ELB10R20A07-4T06 IC908
End Mill Head; 10 mm Dia. × 1.42 mm LOC × 9.7 mm Shank Dia. × 19.65 mm OAL ; 4 FL ; T06 ; Carbide ; TiAlN ; IC908

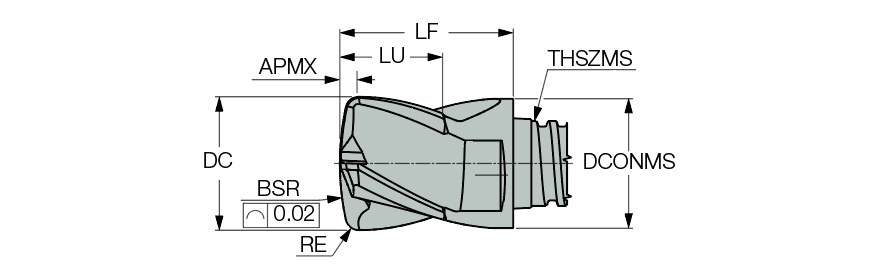

| Application | | Profiling | | Grade | IC908 |
| Cutting Diameter (DC) | 10 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 1 mm | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1.42 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 9.7 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 13 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Overall Length (OAL) | 19.65 mm |
Product Features
| Family Description | Interchangeable lens-shaped (Barrel) solid carbide heads for 3D profiling.For semi-finish & finishing applications | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.044
