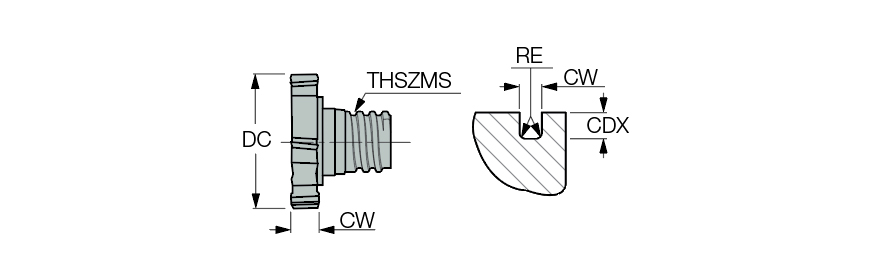

MM TS135-H40D-06T05 IC908
End Mill Head; 13.5 mm Dia. × 2.65 mm Max Depth × 11.25 mm OAL ; 6 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 13.5 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Tool Type | Solid "T" slot cutters |
| Cutting Depth Maximum (CDX) | 2.65 mm | Body Material | Carbide |
| Cutting Width (CW) | 4 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 11.25 mm | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads with diverse corner radii and MULTI-MASTER threaded adaptation | Country of Origin | Israel |

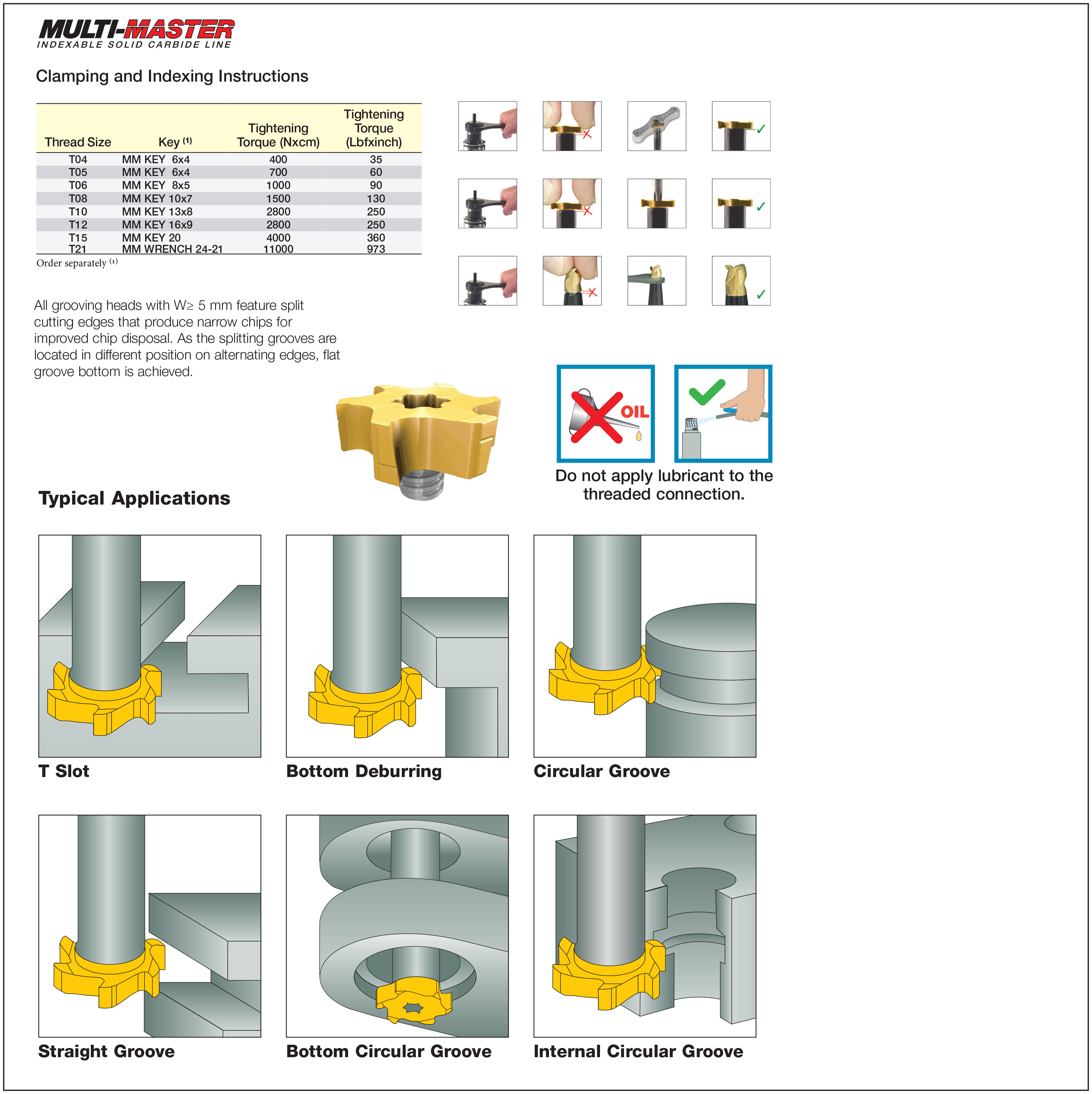

| Remarks | Inserts in 5 mm and wider feature chip splitting edges For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.025
