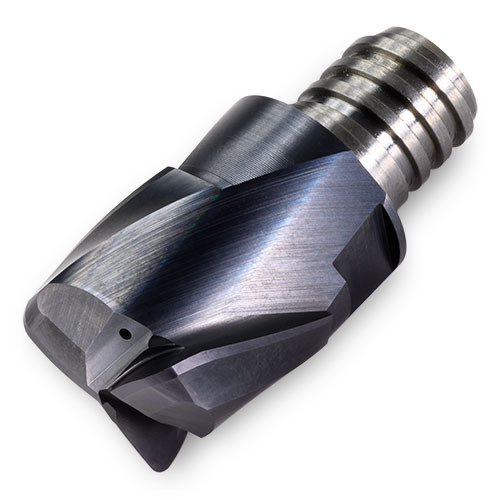

46D16013TRRB180 IN2005
End Mill Head; 0.63″ Dia. × 0.012″ LOC × 0.7″ Max Depth × 0.606″ Shank Dia. × 1.098″ OAL ; 3 FL ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 0.63″ | Flute Helix Angle (FHA) | 30 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 3 | Grade | IN2005 |
| Corner Radius (RE) | 1.378″ | Coating | TiAlN |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.012″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.606″ | Body Material | Steel |
| Functional Length (LF) | 0.827″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | 0.02 mm profile tolerance Precise lens-shape face geometry for finishing decks using 3-Axis Machine Improved surface finish with 2x productivity when compared to a ballnose | Country of Origin | Germany |
Shipping Info
Package Weight
0.119
