MM ECK125H1.5R120-5T21 IC908

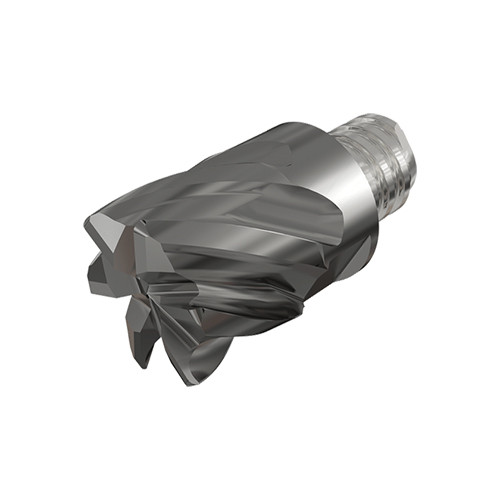

End Mill Head; 1-1/4″ Dia. × 1-1/2″ LOC × 1.181″ Shank Dia. ; 5 FL ; T21 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Rampdown | Shouldering | | Coating | TiAlN |

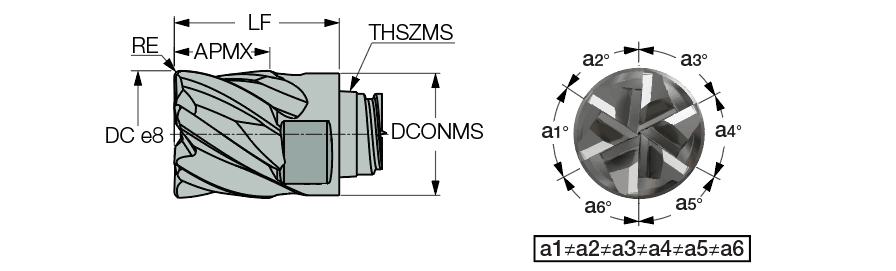

| Cutting Diameter (DC) | 1-1/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Maximum Feed per Tooth (fz(max)) | 0.007 ″/tooth |
| Corner Radius (RE) | 0.12″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T21 | Ramping Angle Maximum (RMPX) | 1.3 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 1.181″ | Body Material | Carbide |
| Functional Length (LF) | 2.165″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 38 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
Product Features
| Family Description | Five and six-flute heads with 35°/38° helix featuring different corner radii. The heads are designed mostly for machining titanium alloys, including hard-to-cut beta- and near beta- alloys, especially by trochoidal milling technique. | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
1.141
