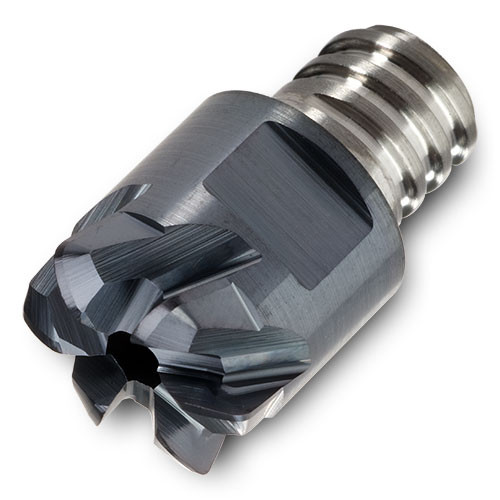

48A12001T8RA121 IN2006
End Mill Head; 0.472″ Dia. × 0.026″ LOC × 0.7″ Max Depth × 0.453″ Shank Dia. × 1.098″ OAL ; 6 FL ; Carbide ; TiAlN ; IN2006
| Cutting Diameter (DC) | 0.472″ | Grade | IN2006 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.026″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.453″ | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Functional Length (LF) | 0.492″ | Body Material | Steel |
| Overall Length (OAL) | 1.098″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.057
