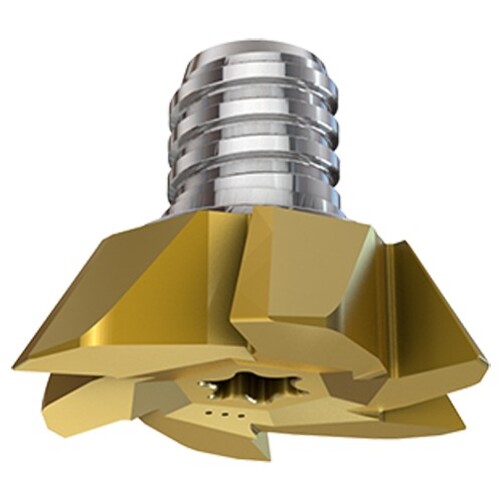

MM GRIT 28K-75D-6T10 IC528
| Application | | Chamfering & Bottom Deburring | Side Slotting | | Overall Length (OAL) | 1.098″ |
| Cutting Diameter (DC) | 1.091″ | Grade | IC528 |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Coating | TiCN+TiN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 105 Degrees |
| Corner Radius (RE) | 0.0079″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.087″ | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.7″ | Body Material | Carbide |
| Cutting Width (CW) | 0.398″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Interchangeable solid carbide dovetail groove milling heads. | Country of Origin | Israel |
| Remarks | Use carbide shanks for groove milling heads |
Shipping Info
Package Weight
0.173
