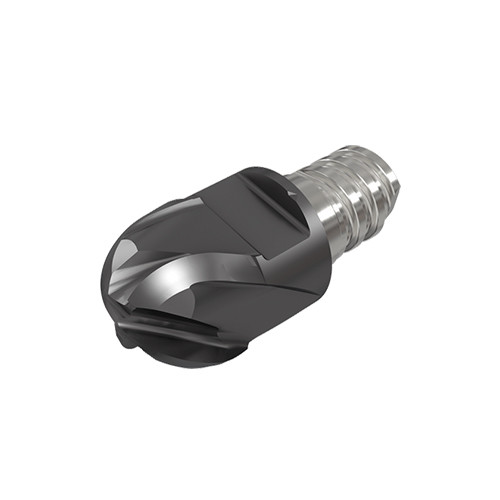

MM EB100A07-2T06 IC908
End Mill Head; 10 mm Dia. × 7 mm LOC × 9.6 mm Shank Dia. × 19.65 mm OAL ; 2 FL ; T06 ; Carbide ; TiAlN ; IC908

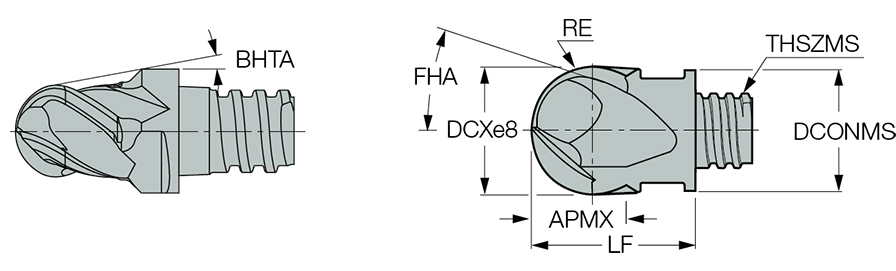

| Application | | Profiling | | Grade | IC908 |
| Cutting Diameter (DC) | 10 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 0.01 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 7 mm | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Body Material | Carbide |
| Functional Length (LF) | 13 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 19.65 mm |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide ball nose milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.041
