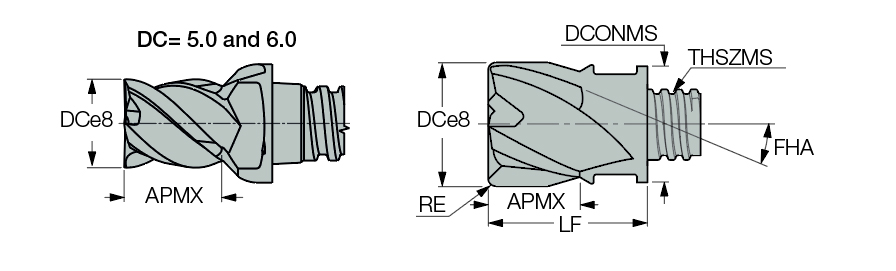

MM EC080B05R0.5-4T05 IC908
End Mill Head; 8 mm Dia. × 5 mm LOC × 7.7 mm Shank Dia. × 17.1 mm OAL ; 4 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | TiAlN |
| Cutting Diameter (DC) | 8 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Corner Radius (RE) | 0.5 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 5 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 7.7 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 10 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 17.1 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
Product Features
| Family Description | Interchangeable 4 flute solid carbide endmill heads with 30°, 45° helix and various corner radii | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.026
