MM HRF100-2T06 IC903
End Mill Head; 10 mm Dia. × 10.2 mm LOC × 9.5 mm Shank Dia. × 19 mm OAL ; 2 FL ; T06 ; Carbide ; AlTiN ; IC903
| Application | | Profiling | | Grade | IC903 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 5 mm | Cutting Edge Material | Carbide |

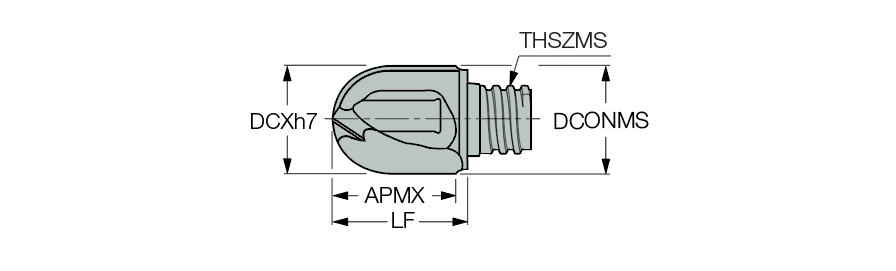

| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | End Shape | Ball Nose |
| Cutting Diameter Maximum (DCX) | 10 mm | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 10.2 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 9.5 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 12.35 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 19 mm |
Product Features
| Family Description | MULTI-MASTER, interchangeable 2 flute, solid carbide, ball nose milling heads. Center cutting, high tolerance (h9 milling head diameter) ground rake and edge. May be used for finishing applications and machining hardened steel | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.033
